Friday, December 25, 2009

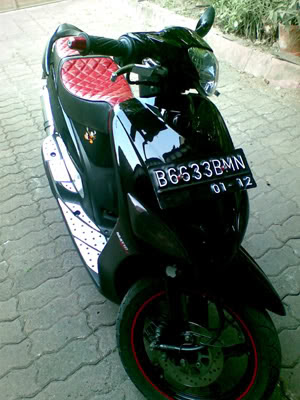

Gambar Modifikasi Yamaha Mio Soul


Yamaha Mio Soul  modification

Data Yamaha Mio Soul modification:
Ban depan : Deli Tire 140/60-14
Ban Belakang : Deli Tire 140/70-14
Monosok : G@zi CBR150
Tabung sok : X-Speed
Knalpot : Custom
Karburator : NSR PE 28

Yamaha Mio Soul  modification
Yamaha mio soul the rear modifikasi


Specifications Yamaha Mio Soul originaly:
MACHINE
Engine Type : 4 steps, 2-Valves SOHC air conditioning
Bore x Stroke : 50.0 x 57.9 mm
Cylinder Volume: 113.7 CC
Compression Comparisons: 8.8: 1
Clutch : Dry, Centrifugal Automatic
Cylinder arrangement : Single
Carburetors : NCV24x1 (Keihin)
Ignition System : DC-CDI
Lubricants : Wet Sump
Engine Oil Capacity ; 0.8 Liter
Transmission : V-Belt Automatic
Ratio Teeth : 2399 to 0829
Caster / Trail : 26.5 degrees / 100 mm
Front Brake System : Single Hydraulic Disc
Rear Brake System: Drum

Chasis
Empty Weight: 87 Kg
Frame Type: Steel Tube
Tank Capacity: 4.1 Liter
Distance Axis Wheels: 1.240 mm
Distance to Land: 125 mm
High Places Sitting: 745 mm

SUSPENSION / TIRES
Suspension Front: Telescopic
Rear Suspension: Telescopic
Front Tire Size: 70/90-14MC 34P
Rear Tire Size: 80/90-14MC 34P

PERFORMANCE
Dimension (L x W x H) : 675 x 1.820 x 1.050 mm
Starter System : Kick & Electric
Maximum Power: 6:54 Km (8.9 ps) / 8.000 rpm
Maximum torque: 7.84 Nm (0.88 kgf.m) / 7.000 rpm




Yamaha Mio Soul  modification




Gambar Modifikasi Honda Beat


honda beat modification
Gambar modifikasi honda beat

honda beat modification
honda beat the rear modification


This Honda Beat modification is in the body was left impressed by the standard. Ass just replaced the rear, handle and grip. Was still a custom exhaust. Others, use the back rim is 6 inches wide.


honda beat modification
honda beat modification


Spesifikasi Honda Beat originaly

Kapasitas tangki bahan bakar : 3,5 liter
Tipe mesin : 4 langkah, SOHC
Sistem pendingin : Pendingin dengan kipas
Volume langkah : 108 cc
Daya maksimum : 8,22 PS / 8.000 rpm
Torsi maksimum : 0.85 kgf.m / 5.500 rpm
Kopling : Otomatis, Sentrifugal, tipe kering
Transmisi : Otomatis, V-Matic
Starter : Electric & Kick Starter
Sistem pengapian : DC-CDI, Battery
Rem depan : Cakram hidrolik, dengan piston tunggal
Rem belakang : Tromol
Tipe suspensi depan : Teleskopik
Tipe suspensi belakang : Lengan ayun dengan sokbreker tunggal
Ukuran ban depan : 80/90 - 14 M/C 40P
Ukuran ban belakang : 90/90 - 14 M/C 46P
Berat kosong : 89,3 kg
Jarak terendah ke tanah : 156 mm
Panjang X Lebar X Tinggi : 1.859 X 676 X 1.053 mm

Wednesday, December 16, 2009

Gambar Modifikasi Honda CBR 150 Road racing

Modifikasi Honda CBR 150 Road racingModifikasi Honda CBR 150 Road racing

Modifikasi Honda CBR 150 Road racingGambar Modifikasi Honda CBR 150 Road racing

Modifikasi Honda CBR 150 Road racing
Modifikasi Honda CBR 150 Road racing

Spesifikasi original Honda CBR 150 R:

- Engine : 4 Stroke, DOHC 4 Valves, Liquid Cooled
- Cylinder Capacity : 149.4 CC.
- Bore x Stroke : 63.5 x 47.2 mm.
- Compression Ratio : 11: 1
- Engine Start Type : Electric Start
- Ignition : CDI DC
- Sparking Plug : CR8E (NGK) or U24ESR-N (DENSO)
- Transmission : 6 Speeds
- Clutch Type : Wet, Multiple Disks
- Dimension (W x L x H) : 652 x 1,910 x 1,065 mm.
- Wheel Base : 1,286 mm.
- Ground Clearance : 172 mm.
- Seat Height : 776 mm.
- Caster / Trail Space : 25 Degree / 88 mm.
- Dry Weight : 115 Kgs.
- Suspension Front : Telescopic
- Suspension Rear : Monoshock
- Brake Type Front : Disc Brake, Disc Plate Size 276 mm.
- Brake Type Rear : Disc Brake, Disc Plate Size 220 mm.
- Tyre Size Front : 80 / 90 - 17 M/C 44P (Tubeless)
- Tyre Size Rear : 100 / 80 - 17 M/C 52P (Tubeless)
- Battery : MF Size 12 V. - 5 Ah
- Fuel Tank Capacity : 10 Liters

Gambar Modifikasi honda Icon

This icon modifikasi honda, his body in the design of nuance sport thick. Visible on the back of the cultivated tapering like MotoGP. Especially after the two exchanged a tire tread width. Eventually the smell of motor sport became increasingly strong smell.


 Modifikasi honda Icon
While elements of the technology disclosed in the application of some memorable parts sophisticated design. Suppose that the flue gas channel is formed of silencernya triangle, then the sides were given the lattice like a shark respiratory tract. Then the construction of the original rear monosok up, changed sleep. Not to mention the addition of arm on the right side rear wheel fender designed wheels together. honda motorcycle icon modification is the result of Honda Thailand AP offerings. Come on display in their boots in the carpet 29th Bangkok International Motor Show


 Modifikasi honda IconThailand Honda Icon Nice Modified

 Modifikasi honda IconHonda ICON Modifies for Football EURO 2008 by Thai modifies shop

Gambar Modifikasi Yamaha Jupiter 135LC

Motor Yamaha 135LC or was known also with Yamaha Spark 135 (Thailand), Yamaha Sniper (Philipines) and Yamaha Jupiter MX (Indonesia). Was the sophisticated duck motor, fastest, and competent, No Matter What "Yang Lain Makin Ketinggalan".


Modifikasi Yamaha 135LC Modifikasi Yamaha 135LC

Modifikasi Yamaha 135LC

Sunday, November 22, 2009

Harley-Davidson FXDF Dyna Fat Bob 2009

Harley-Davidson FXDF Dyna Fat Bob 2009
Harley-Davidson FXDF Dyna Fat Bob 2009

Harley-Davidson FXDF Dyna Fat Bob 2009



Spesifikasi Harley-Davidson FXDF Dyna Fat Bob 2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 305.0 kg (672.4 pounds)
Seat height: 663 mm (26.1 inches) If adjustable, lowest setting.
Overall length: 2,330 mm (91.7 inches)
Ground clearance: 125 mm (4.9 inches)
Wheelbase: 1,620 mm (63.8 inches)
Frame type: Mild steel, tubular frame; rectangular section backbone;
Rake (fork angle): 29.0°
Trail: 1,000 mm (39.4 inches)
Front suspension: 49mm with polished aluminium fork triple clamp
.
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Fully Covered, Coil-over shock
Rear suspension travel: 79 mm (3.1 inches)
Rear tyre dimensions: 427/180-70
Front brakes: Double disc. 4-piston
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. Single piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, “Tommy Gun” 2-1-2 collector exhaust
Fuel capacity: 19.30 litres (5.10 gallons)
Color options: Vivid Black, Black Pearl, Black Denim, Pewter Denim, Red Hot Sunglo

Harley-Davidson FXDC Dyna Super Glide Custom-2009

 Harley-Davidson FXDC Dyna Super Glide Custom 2009
Harley-Davidson FXDC Dyna Super Glide Custom 2009


 Harley-Davidson FXDC Dyna Super Glide Custom 2009


Spesifikasi Harley-Davidson FXDC Dyna Super Glide Custom 2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 295.0 kg (650.4 pounds)
Seat height: 680 mm (26.8 inches) If adjustable, lowest setting.
Overall length: 2,355 mm (92.7 inches)
Ground clearance: 153 mm (6.0 inches)
Wheelbase: 1,630 mm (64.2 inches)
Frame type: Mild steel, tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 29.0°
Trail: 119 mm (4.7 inches)
Front suspension: 49mm with polished aluminium fork
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Coil-over shock
Rear suspension travel: 104 mm (4.1 inches)
Front tyre dimensions: 100/90-19
Rear tyre dimensions: 160/70-17
Front brakes: Single disc. 4-piston
Rear brakes: Single disc. 2-piston
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 19.30 litres (5.10 gallons)
Color options: Vivid Black, Dark Blue Pearl, Red Hot Sunglo, Vivid Black and Pewter Pearl, Flame Blue Pearl and Pewter Pearl
.

Harley-Davidson FXDB Dyna Street Bob-2009

Harley-Davidson FXDB Dyna Street Bob-2009
Harley-Davidson FXDB Dyna Street Bob-2009

Harley-Davidson FXDB Dyna Street Bob-2009


Spesifikasi Harley-Davidson FXDB Dyna Street Bob-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 290.0 kg (639.3 pounds)
Weight incl. oil, gas, etc: 205.0 kg (451.9 pounds)
Seat height: 655 mm (25.8 inches) If adjustable, lowest setting.
Overall length: 2,355 mm (92.7 inches)
Ground clearance: 142 mm (5.6 inches)
Frame type: Mild steel, tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 29.0°
Trail: 119 mm (4.7 inches)
Front suspension: 49mm fork
Rear suspension: Coil-over shock
Front tyre dimensions: 100/90-19
Rear tyre dimensions: 160/70-17
Front brakes: Single disc. 4-piston
Rear brakes: Single disc. 2-piston
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 18.20 litres (4.81 gallons)
Fuel consumption pr. 10 km (6.2 miles): 5.50 litres (1.45 gallons)
Color options: Vivid Black; Black Denim; Pewter Denim; Red Hot Denim; Dark Blue Denim

Friday, November 20, 2009

Harley-Davidson FXD Dyna Super Glide-2009

Harley-Davidson FXD Dyna Super Glide-2009
Gambar Harley-Davidson FXD Dyna Super Glide-2009

Harley-Davidson FXD Dyna Super Glide-2009

Spesifikasi Harley-Davidson FXD Dyna Super Glide-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Dry weight: 286.0 kg (630.5 pounds)
Seat height: 675 mm (26.6 inches) If adjustable, lowest setting.
Overall height: 1,188 mm (46.8 inches)
Overall length: 2,357 mm (92.8 inches)
Ground clearance: 135 mm (5.3 inches)
Wheelbase: 1,630 mm (64.2 inches)
Frame type: Mild steel, tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 29.0°
Trail: 119 mm (4.7 inches)
Front suspension: 49mm with polished aluminium fork
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Coil-over shock
Rear suspension travel: 104 mm (4.1 inches)
Front tyre dimensions: 100/90-19
Rear tyre dimensions: 160/70-B17
Front brakes: Single disc. 4-piston
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome Staggered Shorty Dual exhaust
Fuel capacity: 18.16 litres (4.80 gallons)
.
Fuel consumption pr. 10 km (6.2 miles): 5.00 litres (1.32 gallons)
.

Harley-Davidson FXCWC Rocker C-2009

Harley-Davidson FXCWC Rocker C-2009Gambar Harley-Davidson FXCWC Rocker C-2009

Harley-Davidson FXCWC Rocker C-2009

Spesifikasi Harley-Davidson FXCWC Rocker C-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 307.0 kg (676.8 pounds)
Seat height: 641 mm (25.2 inches) If adjustable, lowest setting.
Overall length: 2,415 mm (95.1 inches)
Ground clearance: 135 mm (5.3 inches)
Wheelbase: 1,760 mm (69.3 inches)
Frame type: Mild steel tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 36.5°
Trail: 157 mm (6.2 inches)
Front suspension: Telescopic fork, 49 mm
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 79 mm (3.1 inches)
Front tyre dimensions: 90/90-R19
Rear tyre dimensions: 240/40-R18
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black Deluxe, Flame Blue Pearl Deluxe, Crimson Red Sunglo Deluxe
.

Harley-Davidson FXCW Softail Rocker-2009

Harley-Davidson FXCW Softail Rocker-2009
Gambar Harley-Davidson FXCW Softail Rocker-2009

Harley-Davidson FXCW Softail Rocker-2009


Spesifikasi Harley-Davidson FXCW Softail Rocker-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 307.0 kg (676.8 pounds)
Seat height: 622 mm (24.5 inches) If adjustable, lowest setting.
Overall length: 2,415 mm (95.1 inches)
Ground clearance: 135 mm (5.3 inches)
Wheelbase: 1,760 mm (69.3 inches)
Frame type: Mild steel tubular frame; rectangular section backbone;
Rake (fork angle): 36.5°
Trail: 157 mm (6.2 inches)
Front suspension: 49mm telescopic fork
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 79 mm (3.1 inches)
Front tyre dimensions: 90/90-R19
Rear tyre dimensions: 240/40-R18
Front brakes: Single disc. 4-piston
Rear brakes: Single disc. 2-piston
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black, Vivid Black Deluxe, Flame Blue Pearl, Crimson Red Sunglo
.

Harley-Davidson FLTRSE3 CVO Road Glide-2009

Harley-Davidson FLTRSE3 CVO Road Glide-2009Gambar Harley-Davidson FLTRSE3 CVO Road Glide-2009

Harley-Davidson FLTRSE3 CVO Road Glide-2009

Spesifikasi Harley-Davidson FLTRSE3 CVO Road Glide-2009

Displacement: 1800.00 ccm (109.84 cubic inches)
Engine type: V2
Stroke: 4
Torque: 155.00 Nm (15.8 kgf-m or 114.3 ft.lbs) @ 6500 RPM
Compression: 9.2:1
Bore x stroke: 101.6 x 111.3 mm (4.0 x 4.4 inches)
Fuel system: Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: Hydraulically actuated, 9-plate wet, with high performance spring
Dry weight: 384.0 kg (846.6 pounds)
Seat height: 668 mm (26.3 inches) If adjustable, lowest setting.
Overall length: 2,428 mm (95.6 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,614 mm (63.5 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 170 mm (6.7 inches)
Front suspension: 41.3mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 51 mm (2.0 inches)
Front tyre dimensions: 130/70-B18
Rear tyre dimensions: 180/55-B18
Front brakes: Double disc. 4-piston calipers
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. 2-piston calipers
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: Chrome, 2-1-2 exhaust header pipe design with
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Titanium Dust with Ghost Feather graphics; Electric Orange and Vivid Black with Ghost Feather graphics

Harley-Davidson FLTR Road Glide- 2009

 Harley-Davidson FLTR Road Glide- 2009Gambar Harley-Davidson FLTR Road Glide- 2009

 Harley-Davidson FLTR Road Glide- 2009


Spesifikasi Harley-Davidson FLTR Road Glide- 2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 355.0 kg (782.6 pounds)
Weight incl. oil, gas, etc: 378.0 kg (833.3 pounds)
Seat height: 683 mm (26.9 inches) If adjustable, lowest setting.
Overall height: 1,397 mm (55.0 inches)
Overall length: 2,390 mm (94.1 inches)
Overall width: 909 mm (35.8 inches)
Ground clearance: 129 mm (5.1 inches)
Wheelbase: 1,613 mm (63.5 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic fork
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. Brembo triple-disc brake system
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: 2-1-2 exhaust system
Fuel capacity: 22.71 litres (6.00 gallons)
Fuel consumption pr. 10 km (6.2 miles): 5.00 litres (1.32 gallons)

Harley-Davidson FLSTSB Softail Cross Bones-2009

Harley-Davidson FLSTSB Softail Cross Bones-2009Gambar Harley-Davidson FLSTSB Softail Cross Bones-2009

Harley-Davidson FLSTSB Softail Cross Bones-2009



Spesifikasi Harley-Davidson FLSTSB Softail Cross Bones-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 318.0 kg (701.1 pounds)
Seat height: 676 mm (26.6 inches) If adjustable, lowest setting.
Overall length: 2,330 mm (91.7 inches)
Ground clearance: 125 mm (4.9 inches)
Wheelbase: 1,630 mm (64.2 inches)
Frame type: Mild steel tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 32.0°
Trail: 160 mm (6.3 inches)
Front suspension: Black leading link
Front suspension travel: 130 mm (5.1 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 109 mm (4.3 inches)
Front tyre dimensions: MT90-B16
Rear tyre dimensions: 200/55-R17
Front brakes: Single disc
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, straight over/under shotgun exhaust with dual mufflers
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black, Dark Blue Pearl, Black Denim, Pewter Denim
.

Harley-Davidson FLSTN Softail Deluxe - 2009

Harley-Davidson FLSTN Softail Deluxe
Harley-Davidson FLSTN Softail Deluxe - 2009


Harley-Davidson FLSTN Softail Deluxe

Spesifikasi Harley-Davidson FLSTN Softail Deluxe - 2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 120.68 Nm (12.3 kgf-m or 89.0 ft.lbs) @ 2850 RPM
Compression: 9.2:1
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system: Pressurized, dry sump
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 316.0 kg (696.7 pounds)
Seat height: 622 mm (24.5 inches) If adjustable, lowest setting.
Overall length: 2,405 mm (94.7 inches)
Overall width: 980 mm (38.6 inches)
Ground clearance: 121 mm (4.8 inches)
Wheelbase: 1,638 mm (64.5 inches)
Chassis and dimensions
Frame type: Mild steel tubular frame; rectangular section backbone;stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake (fork angle): 32.0°
Trail: 147 mm (5.8 inches)
Front suspension: 41.3 mm telescopic, chrome dust covers
Rear suspension: Hidden, horizontal-mounted, coil-over
Front tyre dimensions: MT90-16
Rear tyre dimensions: MU85-B16
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome Over/Under Shotgun exhaust
Fuel capacity: 18.90 litres (4.99 gallons)
Fuel consumption pr. 10 km (6.2 miles): 5.00 litres (1.32 gallons)
.

Harley-Davidson FLSTF Fat Boy-2009

Harley-Davidson FLSTF Fat Boy-2009Harley-Davidson FLSTF Fat Boy-2009

Harley-Davidson FLSTF Fat Boy-2009Spesifikasi Harley-Davidson FLSTF Fat Boy-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 313.0 kg (690.0 pounds)
Seat height: 645 mm (25.4 inches) If adjustable, lowest setting.
Overall length: 2,396 mm (94.3 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,635 mm (64.4 inches)
Frame type: Mild steel tubular frame; rectangular section backbone;
Rake (fork angle): 32.0°
Trail: 147 mm (5.8 inches)
Front suspension: 41.3mm telescopic, “beer can” covers
Front suspension travel: 130 mm (5.1 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 109 mm (4.3 inches)
Front tyre dimensions: 140/75-R17
Rear tyre dimensions: 200/55-R17
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, over/under shotgun exhaust with dual mufflers
.
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black, Black Pearl, Pewter Pearl, Flame Blue Pearl, Black Denim, Red Hot Sunglo

Harley-Davidson FLSTC Heritage Softail Classic-2009

Harley-Davidson FLSTC Heritage Softail Classic

Harley-Davidson FLSTC Heritage Softail Classic

Harley-Davidson FLSTC Heritage Softail Classic



Spesifikasi Harley-Davidson FLSTC Heritage Softail Classic

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: 9-plate, wet
Dry weight: 326.0 kg (718.7 pounds)
Seat height: 648 mm (25.5 inches) If adjustable, lowest setting.
Overall length: 2,405 mm (94.7 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,635 mm (64.4 inches)
Frame type: Mild steel tubular frame; rectangular section backbone;
Rake (fork angle): 32.0°
Trail: 147 mm (5.8 inches)
Front suspension: 41.3mm telescopic, “beer can” covers
Front suspension travel: 130 mm (5.1 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 109 mm (4.3 inches)
Front tyre dimensions: MT90-B16
Rear tyre dimensions: 150/80-16
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black, Pewter Pearl, Dark Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl; Deep Turquoise and Antique White; Flame Blue Pearl and Pewter Pearl; Red Hot Sunglo and Smokey Gold.
.

Harley-Davidson FLHX Street Glide

Harley-Davidson FLHX Street GlideGambar Harley-Davidson FLHX Street Glide

Harley-Davidson FLHX Street Glide



Spesifikasi Harley-Davidson FLHX Street Glide

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Dry weight: 355.0 kg (782.6 pounds)
Seat height: 690 mm (27.2 inches) If adjustable, lowest setting.
Overall length: 2,430 mm (95.7 inches)
Ground clearance: 119 mm (4.7 inches)
Wheelbase: 1,625 mm (64.0 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Enhanced handling
Rear suspension travel: 51 mm (2.0 inches)
.
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. ABS
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. ABS
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: Two-into-One-into-Two chrome exhaust
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Vivid Black, Black Pearl, Pewter Pearl, Dark Blue Pearl, Pewter Denim, Red Hot Denim; Red Hot Sunglo

Harley-Davidson FLHTCUTG Tri Glide Ultra Classic-2009

Harley-Davidson FLHTCUTG Tri Glide Ultra Classic-2009
Gambar Harley-Davidson FLHTCUTG Tri Glide Ultra Classic-2009

Harley-Davidson FLHTCUTG Tri Glide Ultra Classic-2009



Spesifikasi Harley-Davidson FLHTCUTG Tri Glide Ultra Classic-2009

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs)
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: Wet, multiplate
Front suspension: Triple Circuit Damping (TCD) front forks
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. Brembo
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Double disc. Hayes Brake dual-disc rear brake system with integrated park brake
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: 2-1-2 exhaust system
Fuel capacity: 22.71 litres (6.00 gallons)
Comments: Three-wheel specific frame. Optional electric reverse. Rear luggage trunk.
.

Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide


Gambar Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide




Spesifikasi Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide

Displacement: 1800.00 ccm (109.84 cubic inches)
Engine type: V2
Stroke: 4
Torque: 149.00 Nm (15.2 kgf-m or 109.9 ft.lbs) @ 6500 RPM
Compression: 9.2:1
Bore x stroke: 101.6 x 111.3 mm (4.0 x 4.4 inches)
Fuel system: Injection. Electronic Sequential Port Fuel Injection
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Belt
Clutch: Hydraulically actuated, 9-plate wet, with high performance spring
Dry weight: 402.0 kg (886.3 pounds)
Seat height: 696 mm (27.4 inches) If adjustable, lowest setting.
Overall length: 2,494 mm (98.2 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,614 mm (63.5 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 170 mm (6.7 inches)
Front suspension: 41.3 mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. 4-piston calipers
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. 2-piston calipers
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: Chrome, dual exhaust with touring mufflers,
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Ruby Red and Typhoon Maroon with Forge-tone graphics, Autumn Haze and High Octane Orange with Forge-tone graphics; Stardust Silver and Twilight Blue with Forge-tone graphics
.

Harley-Davidson FLHTCU Ultra Classic Electra Glide-2009

Harley-Davidson FLHTCU Ultra Classic Electra Glide
Harley-Davidson FLHTCU Ultra Classic Electra Glide

Harley-Davidson FLHTCU Ultra Classic Electra Glide




Spesifikasi Harley-Davidson FLHTCU Ultra Classic Electra Glide

Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs)
Compression: 9.2:1
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
final drive: Belt
Clutch: Wet, multiplate
Physical measures
Dry weight: 400.0 kg (881.8 pounds)
Seat height: 715 mm (28.1 inches) If adjustable, lowest setting.
Overall length: 2,515 mm (99.0 inches)
Ground clearance: 145 mm (5.7 inches)
Frame type: New mild steel, single spar rigid backbone with
Rake (fork angle): 26.0°
Trail: 173 mm (6.8 inches)
Front suspension: 41.3mm telescopic, cartridge-style damping
Front suspension travel: 117 mm (4.6 inches)
Rear suspension: Air-adjustable
Rear suspension travel: 76 mm (3.0 inches)
Front tyre dimensions: 130/80-B17
Rear tyre dimensions: 180/65-B16
Front brakes: Double disc. ABS
Front brakes diameter: 300 mm (11.8 inches)
Rear brakes: Single disc. ABS
Rear brakes diameter: 300 mm (11.8 inches)
Exhaust system: New Two-into-One-into-Two chrome exhaust
Fuel capacity: 22.70 litres (6.00 gallons)
Color options: Vivid Black, Black Pearl, Dark Blue Pearl, Flame Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl; Deep Turquoise and Antique White; Flame Blue Pearl and Pewter Pearl; Red Hot Sunglo and Smokey Gold.
