Spesifikasi Honda CB1000R- 2009

Honda CB1000R- 2009


Spesifikasi Honda CB1000R- 2009

Displacement: 998.00 ccm (60.90 cubic inches)
Engine type: In-line four
Stroke: 4
Power: 123.37 HP (90.1 kW)) @ 10000 RPM
Torque: 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 8000 RPM
Compression: 11.2:1
Bore x stroke: 75.0 x 56.5 mm (3.0 x 2.2 inches)
Fuel system: Injection. PGM-FI electronic fuel injection
Valves per cylinder: 4
Fuel control: DOHC
Ignition: Computer-controlled digital transistorised with electronic advance
Starter: Electric
Cooling system: Liquid
Gearbox: 6-speed
Transmission type final drive: Chain

Dry weight: 217.0 kg (478.4 pounds)
Seat height: 825 mm (32.5 inches) If adjustable, lowest setting.
Overall height: 2,105 mm (82.9 inches)
Overall length: 2,105 mm (82.9 inches)
Ground clearance: 130 mm (5.1 inches)
Wheelbase: 1,445 mm (56.9 inches)

Power/weight ratio: 0.5685 HP/kg
Fuel capacity: 17.00 litres (4.49 gallons)
Color options: Olive, gray, black, white

Chassis and dimensions
Front suspension: 43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm cushion stroke
Rear suspension: Monoshock with gas-charged HMAS damper featuring 10-step preload and stepless rebound damping adjustment, 128mm axle travel
Front tyre dimensions: 120/70-ZR17
Rear tyre dimensions: 180/55-ZR17
Front brakes: Double disc
Front brakes diameter: 310 mm (12.2 inches)
Rear brakes: Single disc
Rear brakes diameter: 256 mm (10.1 inches)

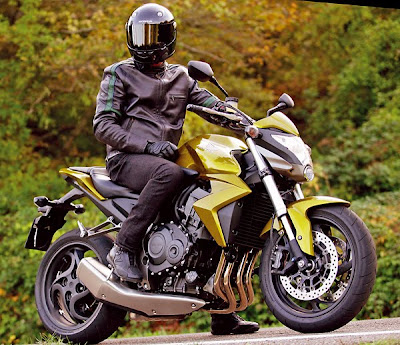

Honda CB1000R- 2009Honda CB1000R- 2009 Red Color
